2014 Cummins NHC20-QSK60G22

    2014 Cummins NHC20-QSK60G22

    2014 ModelLebanon
    2 views·0 buyers saved·Listed 29 days ago

    Equipment Summary

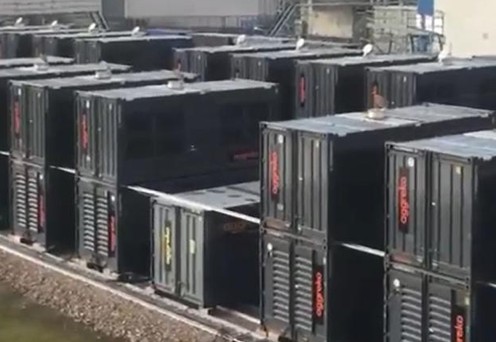

    Fifty (50) Quality Used Cummins/Aggreko NCH20-QSK60G22, Dual Frequency 1875 kVA, 480v. 60 Hz. or 1875 kVA, 400v. 50 Hz. Natural gas generator sets. These 1875 kVA units are set for continuous and parallel to grid IPP applications. These units have less than 3000 hours of use since new. From Years 2014 and higher. The generator is a gas engine-driven alternator with control electronics, mounted on a bedplate and housed within a custom-built 20ft stackable container. The standard package is composed of the following: Alternator and engine assembly, Pressurized oil system, Automated control system, Instrumentation, Safety provisions, Engine cooler pack, Silencer, Gas lines including external Low Pressure Gas Train & internal Solenoid Valve. The engine and alternator are integrally mounted. This assembly is isolated from the bedplate base by rubber isolation mounts. A 20ft containerized Gas Cooling Module (GCM) containing the exhaust silencer and the cooling package for the engine Low Temp Aftercooler and Jacket Water systems is rigidly mounted directly above the roof area of the main genset container. The gas genset and GCM are supplied as a combined and complete gas generation package. Containerized Package (NHC20) “NHC20” - 20-ft containerized generator package. (2) Containers Stacked on top each other. Typical package components: 20-ft ISO container enclosure Cummins QSK60G22 engine Alternator (Stamford or Leroy-Somer) Integrated radiator cooling Sound attenuation Power Command controls Fuel system NG Exhaust silencer Paralleling capability Benefits: Rapid deployment Easy transport by truck or ship Can be stacked into modular power plants Size & Physical Characteristics Item Typical Value Length ~20 ft container Weight ~50,000–70,000 lb Noise ~85–95 dBA Fuel NG Power density ~1.5 MW per module

    Overview

    Cummins

    Make

    NHC20-QSK60G22

    Model

    N/A

    Serial Number

    Very Good

    Condition

    N/A

    Hours Used

    2014

    Year

    Technical Specifications

    Item Number1
    ConfigurationGas engine-driven alternator, reciprocating ICE NG
    Power Per Unit1.5 MW
    Total Capacity75 MW
    Frequency60 Hz
    Quantity In Lot50 units
    Location FobFOB Lebanon

    No attachments or optional equipment listed.
