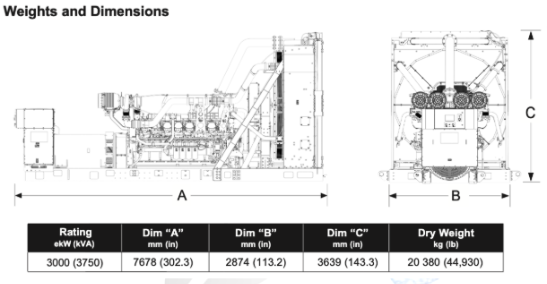

New (Completion January 2026) DESCRIPTION: Open Skid, 60 Hz, 480V, ECS 100 Control Panel, No Breaker 3000 ekW / 3750 kVA Caterpillar 3516E diesel generator set designed for mission critical data center standby applications. Rated 3.0 MW per unit at 0.9 power factor. U.S. EPA Stationary Emergency (Tier 2 compliant). Permanent Magnet excitation system. cULus listed. ECS 100 control panel installed (ECS 200 upgrade required for paralleling). Units are configured as open skid packages with no breaker installed. Up to 15 units available (45 MW total portfolio). These generators all come configured without breakers. The customer was going to have the generators designed with the enclosures housing the breakers as Breaker tap boxes. Model: 3516 PGJL Quantity: 1 Rating: 3000 kW Certification: U.S. EPA Stationary Emergency Use Only Fuel: DIESEL Excitation: PM Frequency: 60 Hz Voltage: 480 V Duty: MISSION CRITICAL STANDBY DATA Center application The following features will be included: Quantity Characteristic Name Feature Description 1 APPLICATION INDICATOR MISSION CRITICAL POWER 1 PGS EMISSION CERTIFICATION EPA STATIONARY EMERGENCY 1 VOLTAGE OPTION 60HZ 480 VOLT (WYE)1 ENGINE RATING 60 Hz, 3000 EKW w/FAN 1 CONFIGURATION 3516E LV/MV 3000kW STBY HPD 1 ALTERNATOR TEMPERATURE RISE 105C TEMP RISE OVER 40C AMB 1 UL LISTING - GENSET cULus CERTIFIED GEN SET 1 ALTERNATOR / GENERATOR 1848E /2B-2/3P-RW-PM 31 1 GENSET CONTROL OPTION CAT ECS 100 CONTROL PANEL 1 SEISMIC CERTIFICATION IBC SEISMIC CERTIFICATION 1 DECAL LANGUAGE ENGLISH INSTRUCTION LANGUAGE 1 MARKET SEGMENT GENERAL EPG 1 CUSTOMER SEGMENT COMMERCIAL BUSINESSES 1 MARKET WORK CODE MISSION CRITICAL STANDBY 1 ALTERNATOR WINDING RANDOM WOUND 1 ALTERNATOR EXCITATION PERMANANENT MAGNET (PM) 1 ALTERNATOR STATOR RTDS ALTERNATOR RTDS 1 POWER FACTOR POWER FACTOR 0.9 1 SHIPPING METHOD NON-OCEANIC TRANSPORT 1 CONTROL BOX LOCATION RIGHT HAND CTRL PANEL MOUNTING 1 CONTROL BOX CAT ECS 100 CTRL PACKAGE MOUNT 1 HMI DISPLAY AND LOCATION CTRL PANEL DOOR W/HMI DISPLAY 1 ENGINE INTERFACE HARNESS ENGINE INTERFACE HARNESS EUI 1 1 CONTROL PANEL BOX MAIN GENERATOR TERMINAL BOX 1 QTY REMOTE ANNUNC (1-5) QTY REMOTE ANNUNC (1-5) 1 TELEMATICS HARDWARE ETHERNET TELEMATICS 5 1 GENERATOR MONITORING PACKAGE GEN TEMP MONITORING PACKAGE N1 NEUTRAL GROUNDING CONNECTIONS NEUTRAL GROUND CONNECTION 01 1 GROUND GROUP GROUND GROUP 14 1 MAIN BOX WIRING LOW VOLTAGE WIRING 04 1 MAIN BOX ACCESSORIES 1800 FRAME REAR & BOTTOM COVER 1 LOWER COVER RIGHT LOWER COVER RIGHT 1 LOWER COVER LEFT LOWER COVER LEFT 1 LOWER COVER REAR LOWER COVER REAR 1 CONTROL BOX MOUNTING CONTROL BOX MOUNTING 1 UPPER COVER LEFT UPPER COVER LEFT 1 CURRENT TRANSFORMER CT 6000:5 RATIO 1 CP/AUX BOX MTG RIGHT RH CP/AUX MTG W/O RH EXT BOX 1 TELEMATICS HARDWARE CERTIFIED DECLINE / NOTAPPLICABLE 1 CAN2 WIRING CAN2 WIRING HMI ON DOOR 1 POWER CONNECTIONS -REAR (BACK) 5000A BUSS BAR (NEMA) -REAR 4 1 CABLE ENTRY - REAR (BACK) TOP CABLE ENTRY-REAR 1 REAR EXT BOX REAR EXTENSION BOX 1 TOP CABLE SHROUD REAR TOP CABLE SHROUD REAR. 1 CENTER POST BUSBARS CENTER 5000A LV MULTI BUS 1800 1 EXTENSION BOX FLOOR REAR EXTENSION BOX FLOOR REAR 1 TORSIONAL COUPLING TORSIONAL COUPLING 76 SHORE 171 LUBE OIL DRAIN DRAIN GP OIL PAN 19 1 VIBRATION ISOLATORS SPRING SEISMIC ISOLATOR 93 1 RADIATOR RAD AF81AVS STANDARD AMB 224 1 COOLANT COOLANT 110 Gal – FUW AF81 RAD 1 MOUNTING RAILS 3516EHPD RAIL LV 2B FRAME 1 PULLEYS ATAAC STUB SHAFT 1 WATER LEVEL SWITCH GAUGES AF81 COOLANT LEVEL SITE GAUGE 1 TURBO EXHAUST 4:2 EXHAUST COLLECTOR 01 1 AUTOMATIC VOLTAGE REGULATOR INTEGRATED VOLTAGE REG 1 AIR CLEANER (ENGINE) HD AIR CLEANER-DUAL ELEMENT 78 1 SPACE/ ALT HEATER KITS SPACE HEATER 1600 FRAME 1 LUBE OIL LUBE OIL 481L SAE 15W-40 1 PRIMARY FUEL FILTER PRIMARY FUEL FILTER/FW SEP 27 1 PYROMETERS (CYL TEMP SENSORS) PLUG GP-NO CYL TEMP SENSORS 24 1 PROTECTION SYSTEMS STANDARD CRANKCASE COVERS 05 1 STARTERS DUAL ELECTRIC START LH 50MT 42 1 STARTER COVERS COVERS-DUAL START & NO BAR 40 1 SPACE HEATER CONTROL SPACE HEATER CONTROL 01 1 CRANKCASE VENTILATION SYSTEM NON-FILTER CRKCASE VENT SYS 01 1 JACKET WATER HEATER JACKET WATER HTR-208V 294 1 JACKET WATER HEATER WIRING WIRING GP-JW HEATER 42 1 HEATERS CONTROL GROUP 208/220/240V JWH CONTROL 1 ALT TEST REPORT ALTERNATOR TEST REPORT 1 SHRINK WRAP PROTECTION SHRINK WRAP PROTECTION 351 SPECIAL TEST (PGS) - GEN PGS TEST REPORT @ 0.8 PF
